Future Motorsports

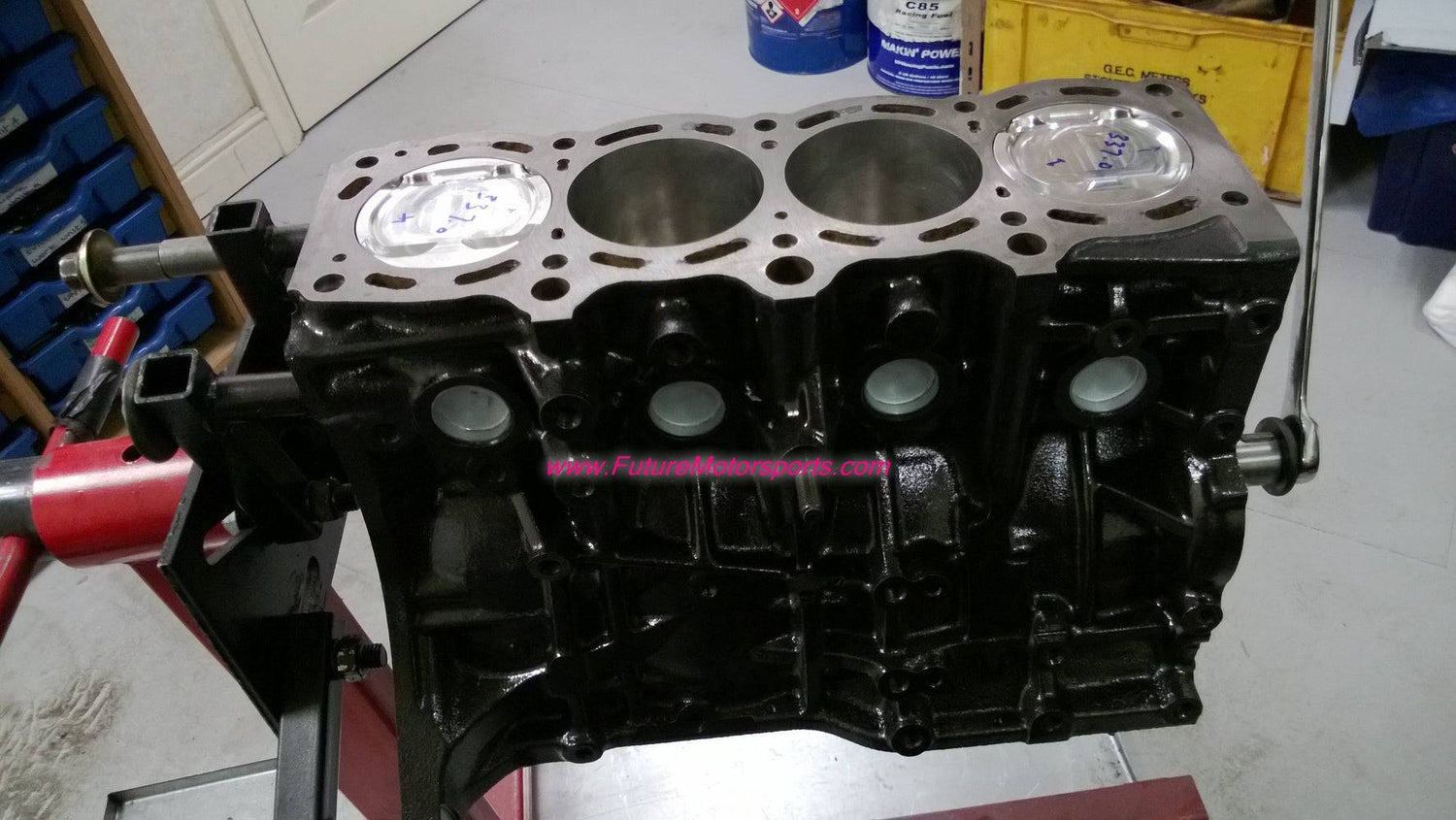

STAGE 3+ 3SGTE CUSTOM BUILT RACE & FULL RACE SPEC SHORT BLOCK 700-1000bhp+

STAGE 3+ 3SGTE CUSTOM BUILT RACE & FULL RACE SPEC SHORT BLOCK 700-1000bhp+

Regular price £4,995.00
Regular price Sale price £4,995.00
Sale Sold out
Taxes and Shipping calculated at checkout.
Quick Info SKU: 3SGTE-Stage 3+ Full Race Category: 3SGE / 3SGTE Tags: 3SGE / 3SGTE BUILT SHORT BLOCKS CELICA GT4 ST205 MR2 SW20 1989-1999
STAGE 3 3SGTE CUSTOM BUILT RACE & FULL RACE SPEC SHORT BLOCK 700-1000bhp . This Future Motorsports Stage 3 Custom Built 3SGTE Full Race Short Block?ÿ is capable of handling over 700bhp. IF YOUR LOOKING IN THIS SECTION YOU ARE LOOKING AT A SERIOUS FULL RACE SHORT BLOCK PUSHING THE BOUNDARY OF THE 3SGTE PLATFORM. This is a serious spec short block that will be used in the most extreme applications. Future Motorsports Stage 3 3SGTE Custom Full Race Short Block covers the following: ƒ?? Custom Billet Future Motorsports Spec Piston Kit (86.00 / 86.25 or 86.50mm bore). ƒ?? Custom pistons come standard with, coating to the tops and sides with lateral gas ports, double oiling to pin holes. Thicker skirts and crown. ƒ?? Carrillo HD Connecting Rods with CARR Bolts or Pauter X Beam Rods with ARP625 Bolts. Optional Aluminum connecting Rods with L19 bolts (aluminum rods are for drag use only). ƒ?? Any Choice of Compression Ratio (we can advise). ƒ?? Upgrade Wrist Pins .250 x 250 wall. - Half filled block (application specific - if required) - Ductile Iron Custom Made Sleeves (application specific - if required)-includes sleeves and installation. - Billet Crankshaft (application specific - if required and choice of stroke) ƒ?? Billet Speedworks Billet Main Caps. ƒ?? Custom Oil Clearance ƒ?? Custom PTW Clearance ƒ?? ACL or King Race Bearing set. ƒ?? ARP 2000 Main Studs. ƒ?? All related Custom Machine Work. ƒ?? Billet Main Caps Lined Bored and honed to new custom specs ƒ?? Bore, hone, skim. - REM Super finishing service on crankshaft and connecting rods. ƒ?? Balance rotating assembly (crank, rods, pistons). ƒ?? Re-inspection and Re-measure ƒ?? All Cleaning ƒ?? Final Assembly
